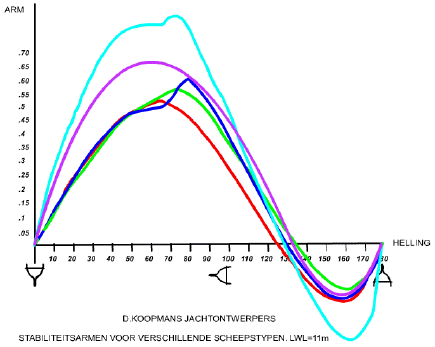

Righting arms for different types of yachts. LWL = 11 meter. |
|
| Colour codes in diagram |
||
| Centreboard | 15t aluminium/woordcore | |
| V-shaped hull |
16t aluminium/woodcore | |
| Performance cruiser/Racer |
10t woodcore | |
| Long keeled yacht |
19t steel | |
| Fin keel yacht |
3t aluminium/woodcore |
|
| Stability at 25° heel = lever x weight | ||
| Centreboard | 15x0.28=4.2tm | |
| V-shaped hull |
16x0.25=4.0tm | |
| Performance cruiser/Racer | 10x 0.55=5.5tm | |
| Long keeled yacht |
19x 0.28=5.3tm | |
| Fin keel yacht |
13x 0.36=4.7tm | |
